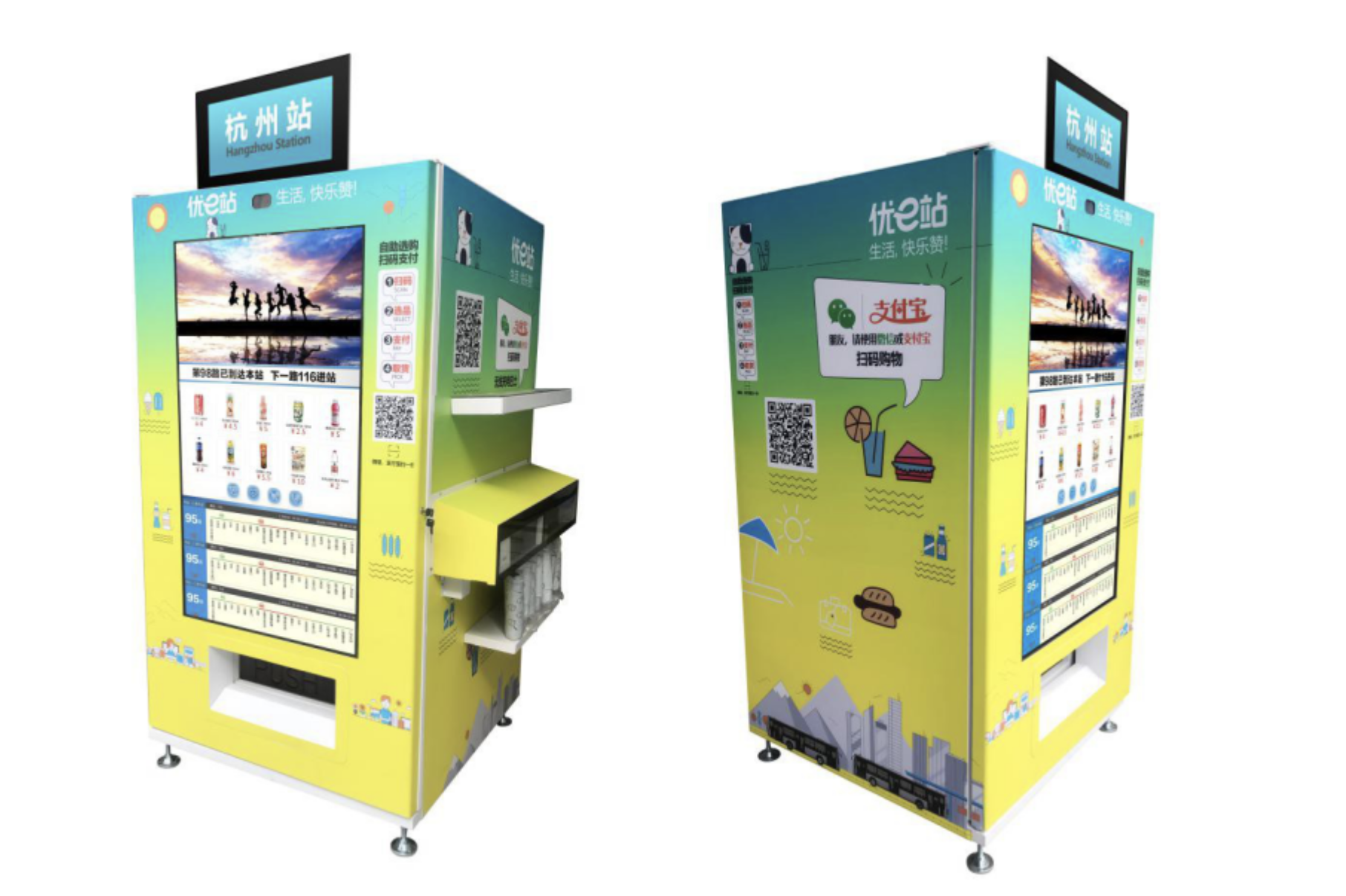

The smart electronic board includes three parts: electronic board, vending, and facilitation functions. The smart electronic board mainly includes the following functions: real-time arrival forecast of buses, multimedia video information release, voice broadcasting, mobile intelligent monitoring, advertising, automatic detection, anti-theft alarm, remote setting, vending, shared umbrella, wireless charging, etc.
System of smart board
(1)Body of the board
Smart station board management cabinet: The main protective structure is stainless steel/cold plastic plate, CNC machining, thickness ≥ 3mm.
It has a series of features such as low energy consumption (saving energy consumption of more than 90% compared to traditional light sources), long service life (50,000 hours, light decay of not more than 30% in 5 years), high brightness (high luminous efficacy, brightness exceeding 100LM/W), constant current circuits (advanced constant current circuits to ensure the service life of LED), high safety (using 24V low voltage, no harm to people).
The interior includes a cooling system and a strong current safety management system: equipped with a cooling fan, leakage protector, electric meter, air conditioner, and other equipment to ensure the safe and good operation of the electronic board.
(2) Information release system: High-performance LCD industrial display is used to display information release.
(3) Video surveillance system: High-definition cameras, hard disk video recorders and other equipment are used to monitor the security and passenger flow of the platform.
(4) Centralized control system: High configuration industrial computer is used to control the operation of the entire electronic board.
(5) Centralized power supply system: Relays, switches, electric meters, time switches, etc. are used to ensure stable and reliable power supply.
(6) Safety system: Working conditions of the environment and equipment can be monitored through the alarm device; illegal intrusion warning, etc.
Vending system
This product adopts the new retail concept popular in today’s society. It integrates retail and board systems through advanced technologies such as big data and artificial intelligence based on the Internet.
Container: It is used for storing goods. There are 6 tiers. Each tier has 10 conveyors. Therefore, 360 goods can be put into a container. Each conveyor can be combined with each other to accommodate larger goods, such as drinks, instant noodles, chips, etc.
Motor: A motor is connected behind each conveyor. There are 60 motors in total. Products can be sent out when the rotation of the motors drives conveyors.
Compressor: It is located below the container. It can provide fresh-keeping and refrigeration services for goods.
Convenience System
Functions of shared umbrellas and wireless charging have been added to the smart electronic board to make it more convenient for citizens to travel and reduce the impact caused by certain unexpected situations, such as sudden heavy rain or mobile phones being out of power.
Shared umbrella: 20pcs (factory standard), hidden markings on the umbrella handle, which can be recognized by the sensor.
Motor: 1pcs, control the switch of umbrellas.
Sensor: Communicate with the background; sense and distinguish the shared umbrellas. Umbrellas can be returned anywhere there is a new electronic board.
Wireless charger: 4pcs; There is no need to worry that mobile phones are out of power. Phones can be charged on board as long as phones can support wireless charging.
Functions
Real-time bus arrival forecast: display bus arrival forecast information that includes routes and distance.
Multimedia video information release: time, date, weather forecast, bus, government information, advertising, etc.
Voice broadcasting: broadcast the location of the vehicle through TTS; real-time control of the volume backstage; automatic adjustment of the timing period.
Mobile intelligent monitoring: real-time monitoring of passenger flow, vehicles, and public security around bus stations.
Advertisement on the back of the board, which can be changed regularly.
Automatic detection: automatically detect abnormal situations on board and send them to the management center and designated mobile phones.
Anti-theft alarm: It is anti-theft and anti-sabotage. One lock only matches one box (the open rate is less than 1%). monitor whether the box is opened illegally and send alarm information to the dispatch center.
Remote timing switches and lighting switches: reduce the power consumption and maintenance rate of the boards, save energy, protect the environment, and save labor costs.
Vending function: pick and buy goods through UE station; monitor goods details inside each new board backstage in real time through the background software.
Shared umbrella: Umbrellas can be borrowed and returned through the Usan which has an automatic identification function.
Wireless charging: free charging with the latest wireless charging technology.
Advantages
Various functions: It includes the vending function, shared umbrellas, and wireless charging.
High intelligence: Except stock replenishment the rest of the operations can be managed and operated in the office. The board and its surroundings can be monitored, so as to achieve another sense of “knowing the world before getting out of the way”.
Innovative technology: The new retail intelligent electronic board is a common innovation of thinking and technology, jumping from the previous concepts. Therefore, the board is closer to the life of the citizens.
Precise bus real-time reporting information: The auxiliary reporting station system can be configured according to the actual needs of users.
Backend server management: Whether it is a station board system, a vending system, or a convenience system, they can be monitored and controlled backstage. And the management interface is user-friendly and saves manpower.
Perfect system architecture: It can connect data with companies’ scheduling systems.
Flexible networking: Various access methods, such as wireless and wired networks can be configured according to users.
Perfect multimedia graphics and text and video management functions: scheduled playback, real-time reporting of video playback status, picture, and video backstage check synchronization, etc.
User rights management: It can customize multiple roles such as administrator, operation and maintenance personnel, and video administrator to ensure the reliable operation of the system.
Advanced structural concept and design: anti-high and low temperature, waterproof, dustproof, anti-leakage and other abnormal environments.
