Smart Parking - Parking Guidance
Effect Diagram & Product Advantages
Product Advantages
Data Intercommunication
- Currently, video parking guidance systems from different manufacturers are standalone systems that do not intercommunicate with parking lot systems, preventing data sharing. Our video parking guidance system is fully interoperable with parking lot systems.
- Simple Installation, Cost Savings：Installation is straightforward, requiring only the placement of cameras at the area entrance, reducing equipment investment and saving costs.
- Simple Deployment：The overall system deployment and configuration are simplified. Area settings use logical partitioning rather than physical partitioning, making it very convenient to adjust area settings when changes occur on-site.
Platform Advantages
The system is based on Linux and MySQL databases, providing stable operation. It uses a BS (Browser/Server) architecture, requiring no client software installation. Management and configuration are performed through a web interface, making operation and installation easy.
Entrance Information Screen Guidance
Before entering the parking lot, drivers can view available parking spaces on the "Entrance Information Guidance Screen" installed at the main entrance of the parking lot, showing the number of available spaces on each level.
Area Entrance License Plate Recognition
The parking lot is divided into areas, with video zone cameras installed at each main entrance of the areas. When a vehicle enters an area, the available parking spaces in that area decrease by one. When a vehicle leaves, the number of available spaces increases by one.
Guide Screen Guidance

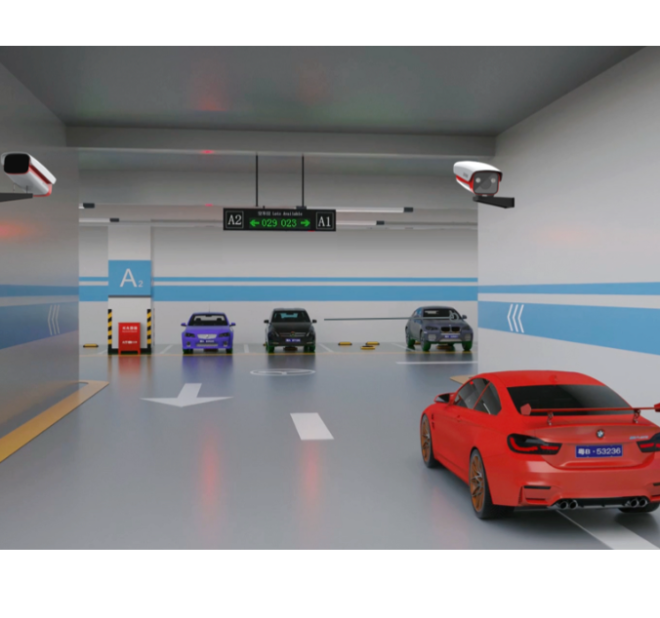

After entering the parking lot, "Parking Guidance Screens" are installed above each branching path inside the parking lot, displaying the number of available spaces in each direction from that junction.
Parking Completed - Information Screen Updates
After parking, the outdoor display screen and indoor information screen will automatically decrease the number of available spaces at the current location by one, completing the parking guidance process.
Green Light: At least one parking space is available
Red Light: Parking space is occupied, no available spaces
Map Route Interface：QR Code Payment Interface
Video Parking Guidance System mainly consists of video parking detectors, indoor directional guidance screens, outdoor parking space display screens, reverse search machines, video parking guidance platform, and optional equipment such as recorders, reservation screens, and Bluetooth navigation devices.
