GL-SBL-P118 Smart lock for public bicycles

GL-SBL-P118 is a GPS positioning terminal designed for shared bicycles and electric vehicles. It features 4G network remote control, real-time GPS positioning, Bluetooth communication, vibration detection, anti-theft alarms, and more. The terminal interacts with backend systems and mobile apps via 4G or Bluetooth to enable real-time vehicle control and status reporting.

Previous:No more

Next: 4G/5G Smart Safety Helmet with Advanced Communication Technology

CONTACT NOW

Product Detail

FAQ

▞ Device Basic Parameters

1、Full Unit Parameters

Parameter	Description
Connection to E-bike	UART communication
Indicator Light	Blue light: Lock network connected to server; Adapter charging: Red light (charging), Blue light (fully charged)
Alert Sound	Buzzer (>65dB). Vehicle movement alarm when locked; Locking confirmation sound.
Unlocking Method	Network/Bluetooth
Locking Method	Manual locking
DC Charging	DC-6V 3A
E-bike Comm. 5V Req.	5VDC±10%, 500mA (long-term output, not controlled by lock)
Built-in Battery	Rechargeable Li-ion: 3.7V/8000mAh/6400mAh (optional). Standby time: 1-2 months (25°C, connected to server).
Water/Dust Resistance	IP66
Housing Material	Face cover: PA66+30% GF; Base: Aluminum alloy
Standby Current	<5mA
Operating Temperature	-10℃ ~ +60℃
Operating Humidity	10% ~ 95%
Storage Temperature	-40°C ~ +80°C
SIM Card	Size: Micro-SIM
Dimensions (L×W×H)	194mm × 148mm × 39mm
Color	Black (customizable)
Weight	0.85kg
Mounting Screw	M5 diameter
Power Adapter	DC-6V/3A (UK/US/AU standards optional)

2、4G Performance Supported Bands

Region	Supported Bands
2G	GSM/GPRS/EDGE 850/900/1800/1900MHz
4G Japan	FDD-LTE B1/B3/B8/B18/B19/B26
4G North America	UMTS/HSDPA/HSPA+ B2/B5; FDD-LTE B2/B4/B12
4G Europe	GSM/GPRS/EDGE 900/1800MHz; UMTS/HSPA+ B1/B5/B8; FDD-LTE B1/B3/B5/B7/B8/B20/B38/B40/B41
4G Australia	GSM/GPRS/EDGE 850/900/1800/1900MHz; UMTS/HSPA+ B1/B2/B5/B8; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28/B40

3、GPS Performance

Parameter	Description
Positioning	GPS, GLONASS, BD (BeiDou, optional)
Sensitivity	-160dBm
Start Time	Cold start: <120s; Hot start: <30s (open area, clear sky, no obstruction)
Accuracy	≤15m (open area, clear sky, no obstruction)
Conditions	≥4 satellites, SNR >30dB

4、Bluetooth Performance

Parameter	Description
Bluetooth Version	BLE 4.0
Receive Sensitivity	-90 dBm
Max. Communication	≥10m (open area)

5、RFID Performance (Optional)

Parameter	Description
Frequency	13.56MHz
Protocol	ISO/IEC 14443A

▞ 19AH vs. 38AH Model Specifications

Key Parameter	19AH Model	38AH Model
Battery Capacity	3.6V 19 Ah Lithium Battery	3.6V 38 Ah Lithium Battery
Max. Battery Life	Up to 3 years (@ 12 events/day)	Up to 5 years (@ 12 events/day)
Detection Interval	2s (Configurable)	30s (Configurable)
Response Time	1 ~ 10s (Configurable)	3 ~ 30s (Configurable)
Detection Range	0.5 ~ 1.2 m	0.5 ~ 1.0 m
Dimensions (Dia x H)	108 mm x 69 mm	130 mm x 78 mm

▞ Function Desciption

Function	Description
Positioning	Supports single/continuous positioning modes (continuous not recommended for e-bikes due to high power consumption). Remote command for real-time location. Supports GPS/GLONASS/BD (optional).
2G/4G Communication	Remote monitoring of location, battery level, temperature; remote setting of max. speed, low-battery alerts (requires controller support).
WiFi Positioning	WiFi-assisted positioning (optional).
UART Communication	UART communication with controller (lock as host, controller as slave).

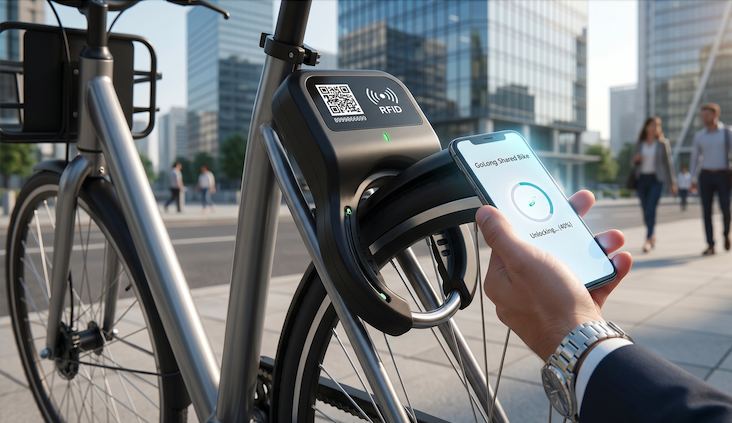

Bluetooth Unlock	BLE 4.0. App scans QR code → command sent to server via user’s network → server sends unlock command to App → App unlocks via Bluetooth.
Network Unlock	App scans QR code → lock sends command to server via network → server sends unlock command to lock.
OTA Updates	Remote firmware updates via server; supports controller updates (requires controller support).
Vibration Detection	Built-in accelerometer detects vehicle movement. Sends alert to server when vibration detected while locked.
Fault Reporting	Reports vehicle faults to server (requires controller support).
