AI Road Detection System: Real-Time Smart Pavement Inspection

Upgrade your highway maintenance with our advanced AI Road Detection System. Powered by real-time edge computing and an 8MP industrial camera, this system automatically identifies over 25 types of pavement distress with over 95% accuracy at driving speeds up to 120 km/h.

Previous:No more

Next: Charging pile - mobile charging pile

CONTACT NOW

Product Detail

FAQ

▞ Product Overview

Upgrade your highway asset management with our state-of-the-art AI Road Distress Detection System. Designed to overcome the high costs, slow speeds, and safety risks of traditional manual inspections and bulky detection vehicles, this smart solution empowers contractors and transportation departments to achieve fully digitalized road maintenance.
Powered by an advanced AI edge computing unit (TPU) and an 8MP industrial global shutter camera, the system easily mounts on standard patrol vehicles. It captures and processes high-definition road conditions in real-time at driving speeds of up to 120 km/h.

▞ Key Features & Advantages

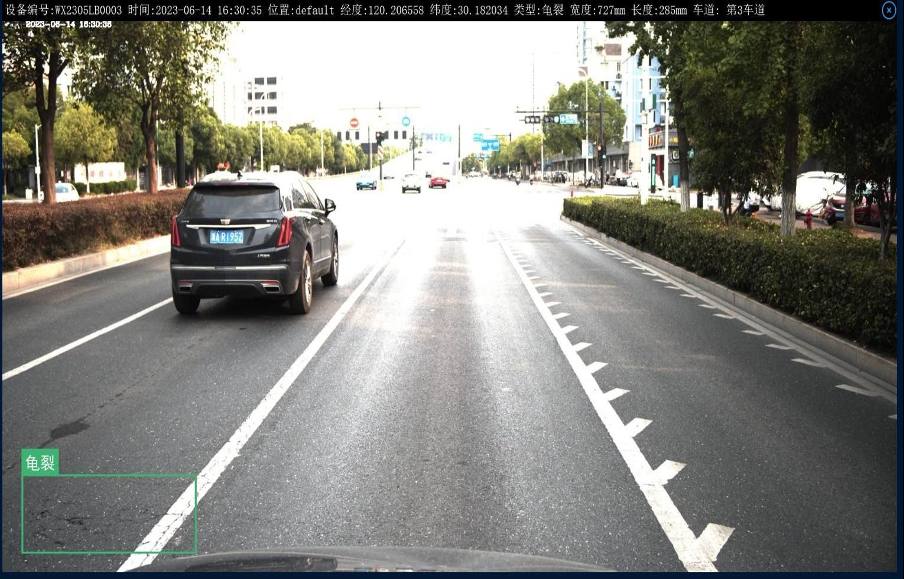

High-Speed Real-Time Detection：Maximize your inspection coverage. Our system processes road data instantly at driving speeds of up to 120 km/h , allowing you to seamlessly inspect hundreds of kilometers daily without disrupting regular traffic flow.

Exceptional AI Accuracy (>95%)：Powered by advanced GPU edge computing and deep learning algorithms , the system automatically identifies over 25 types of pavement distress. From transverse and longitudinal cracks to potholes and alligator cracking , it delivers a proven recognition rate exceeding 95%.

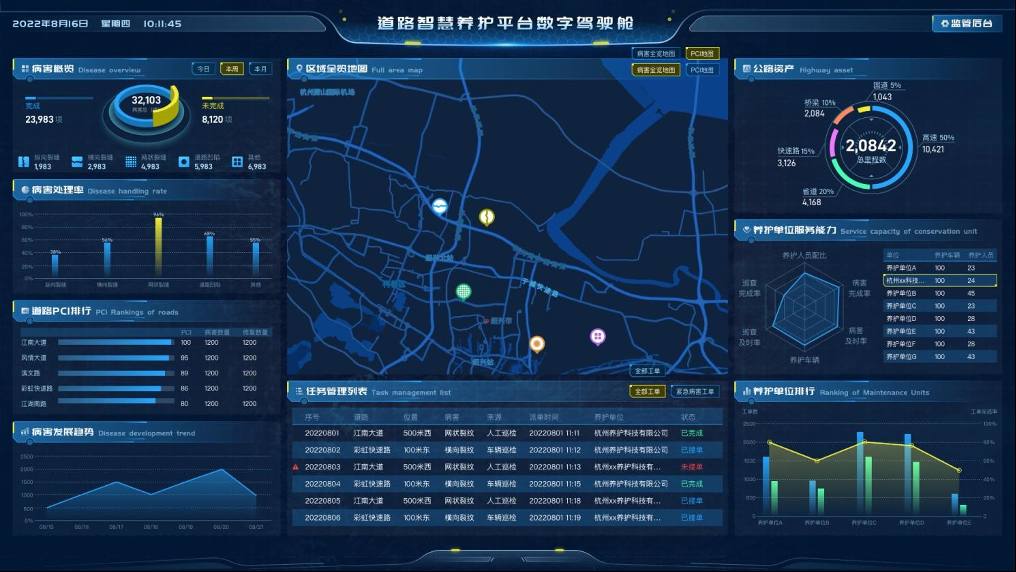

All-in-One Automated Platform：Experience a fully closed-loop digital workflow. The smart platform automatically categorizes distress severity , instantly dispatches repair work orders to maintenance crews , and pinpoints exact distress locations using high-precision GPS/Beidou technology.
Cost-Effective & Easy Deployment：Drastically reduce labor and equipment investments. The system requires only one operator and features a plug-and-play design that mounts easily on standard patrol vehicles. It operates reliably with ultra-low power consumption (under 60W)

▞ Technical Specifications

1、AI Edge Computing Unit

Features	Specifications
Computing Power	INT8 peak computing power ≥ 17.6 TOPS FP32 peak computing power ≥ 2.2 TFLOPS
Throughput	ResNet50 model: ≥ 1000 frames/sec MobileNet model: ≥ 2500 frames/sec
Video Decoding	Supports ≥ 38 channels of 1080P decoding Max decoding resolution: 8K (8192*4096)
Memory & Storage	DDR Memory: ≥ 12GB eMMC: ≥ 32GB SATA: ≥ 2TB / SSD: ≥ 1TB
Network	2 × Gigabit Ethernet Ports
Operating Temp.	-20°C to +60°C

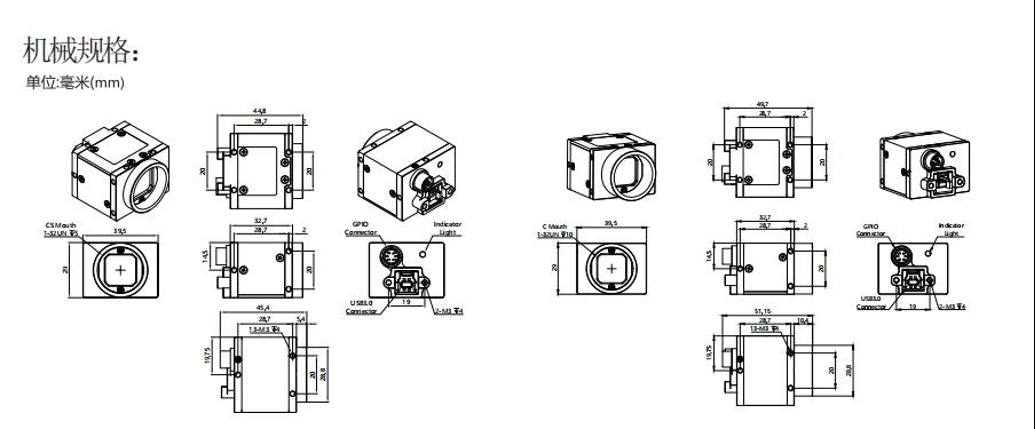

2、8MP Industrial Global Shutter Camera

Features	Specifications
Sensor Type	1" CMOS, Color
Shutter Type	Global Shutter
Effective Pixels	8.9 Megapixels
Resolution & Frame Rate	4096 * 2160 @ 32 FPS
Data Interface	USB 3.0 TYPE B
Lens Mount	C-Mount
Power Consumption	< 4.2W
Operating Temp.	0°C to 50°C

▞ Comparison

Metrics	Our AI Detection System	Traditional Detection Vehicle	Manual Inspection
Operating Speed	Up to 120 km/h	< 100 km/h	1 km/h (Walking)
Processing Speed	120 km / hour	12 km / day	1 km / hour
Personnel Needed	Only 1 person	3 - 4 persons	1 person
Investment Cost	Extremely Low (Approx. 1/30 of Traditional)	Extremely High	N/A
Safety Level	High	High	Low
